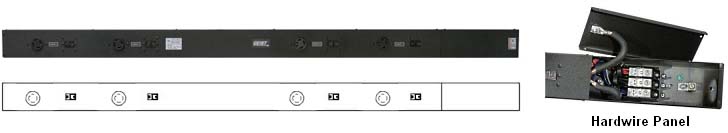

66″ Vertical 3-Phase Delta PDU – 80A/250V w/ 12 x C19 Outlets, w/ Hardwired Input Panel


Geist part # ZPB128-XX8C19HW15-BE

Digital Meter Options


Geist ZPB128-XX8C19HW15-BE – 3-Phase Vertical 80A/208V PDU w/ Hardwire

 Features: 66 in. 3-Phase vertical rack mount PDU 80A/250V with 12 x C19 outlets, and hardwire input panel
4 triple  pole 20 Amp magnetic breaker/switches, full length mounting bracket, removable faceplate for hardwire panel

 Applications:  rack mount power distribution for offices, servers, IT, and networking environments

 Geist part # ZPB128-XX8C19HW15-BE – 66" Vertical rack PDU w/ 12 x IEC C19 receptacles and hardwired input


PDU Type             66 in. Basic vertical rackmount
Voltage 250V
Overload Protection 4 – triple Pole 20A Magnetic Breakers
Output Watts 23kW
Switch Breaker/Switch Combo
Amperage 80A
Maximum Output per Receptacle
20 Amp
AC Power Cord Wiring Access Panel
Outlets IEC C19 x 12
Frequency Compatibility 50/60 Hz
Construction Steel
Housing Color Black powdercoat

 Technical Certifications: UL & c-UL Listed 60950, RoHS certified

Features a Lifetime Warranty

*This PDU is built to order and non-returnable*
