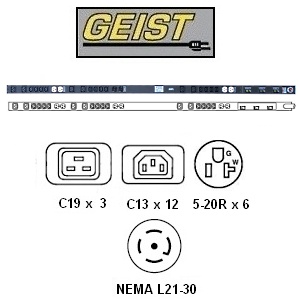

70″ 3-Phase Vertical Rack PDU – 30A/120V/208V WYE w/ 12 x C13, 3 x C19, 6 x 5-20R Outlets and 10 foot L21-30P Power Cord


Geist part # XPW249-103M46TL21

Digital Meter Options

Power Cord Options

SKU: XPW249-103M46TL21

Geist XPW249-103M46TL21 – 3-Phase PDU w/ 12 x C13, 3 x C19,  6 x 5-20 Outlets

 Features: 70 in. vertical PDU 30A , rated for 120V/208V WYE with 12 x C13, 3 x C19, 6 x 5-20R outlets, 10′ NEMA L21-30P power cord
 Includes full length swivel bracket and toolless mounting hardware, 3 double-pole 20A breakers

 Options: Local/remote ethernet meter and custom power cord options

 Applications:  rack mount power distribution for offices, servers, IT, and networking environments

 Geist part # XPBW249-103M46TL21 – 70" Vertical rack PDU w/ 12 x C13, 3 x C19, 6 x 5-20R outlets and L21-30P power cord


PDU Type             70 in. Basic vertical rackmount
Voltage 120V/208V WYE
Overload Protection 3 x 20A breakers
Output Watts 8.6kW
Switch Breaker/switch combo
Amperage 30A x 3-phase WYE
Maximum Output per Receptacle
15 amp per bank
AC Power Cord 10 Foot NEMA L21-30P Twist Lock Cord
Outlets 12 x IEC C13,  6 x IEC C19, NEMA 5-20 x 6
Frequency Compatibility 50/60 Hz
Construction Steel
Housing Color Black powdercoat

 Technical Certifications: UL & c-UL Listed 60950, RoHS certified

Features a Lifetime Warranty

*This PDU is built to order and non-returnable*
