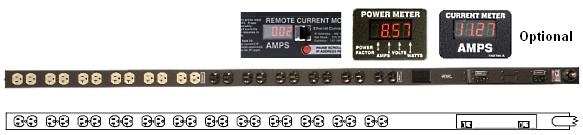

Vertical 66″ Network Grade PDU 30A/120V w/ 24 x NEMA 5-15/20R Outlets, 10′ L5-30P Power Cord


Geist part # XPB240-103D20TL5

Digital Meter Options

Power Cord Options

SKU: XPB240-103D20TL5

Geist XPB240-103D20TL5 –  30A/120V Vertical Rack PDU w/ 24 x 5-15/20 Outlets

 Features:  66" vertical 0U  rack mount PDU, rated for 30A/120 with 24 x NEMA 5-15/20R receptacles and 10′ L5-30P power cord
 Includes 2 x single-pole circuit breakers, full length swivel bracket and recessed housing

 Options:  15 foot  power cord length, digital current meter (local, non-scrolling) or digital power meter (amps, volts, watts, power factor)

 Applications:  rack mount power distribution for offices, servers, IT, and networking applications

 Geist part # XPB240-104D20TL5  – 66" vertical PDU w/ 24 x NEMA 5-15/20R outlets, 10 foot L5-30P cord

PDU Type             Basic 66" vertical rackmount (0U)
Voltage 120V
Output Watts 2.9kW
Amperage 30 amp
Current Protection
2 x 20A circuit breakers
AC Power Cord 10 Foot Twist Lock L5-30P power cord
Outlets 24 x NEMA 5-15/20R Sockets
Frequency Compatibility 50/60 Hz
Construction Steel
Housing Color Black powdercoat

 Technical Certifications: UL & c-UL Listed 60950, RoHS certified

Features a Lifetime Warranty

*This PDU is built to order and is non-returnable
