Iron Box part # IBX-1010-01
NEMA 5-20P to 5-20R Power Cord, 1 Foot, Rated for 20 Amps, 125V

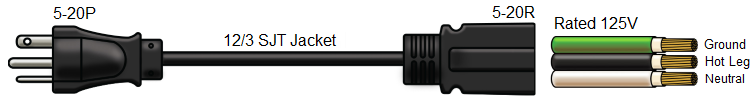

Features: NEMA 5-20P to 5-20R power cord with 12/3 SJT jacket, rated for 20A, 125V
Applications: Connect equipment to a 5-20R wall outlet or power strip
NEMA 5-20P to 5-20R Power Cable – 1 Foot
Specifications:
| Plug Type | 5-20P |
| Connector Type | 5-20R |
| Length | 1 Foot |
| Amperage | 20 Amps |
| Voltage | 125V |
| Number of Conductors | 3 |
| Wire Gauge | 12 AWG |
| Jacket Type | SJT |
| Temperature Rating |
105º C |
| Color | Black |
| Testing | Tested for Voltage Hi-Potential, Continuity, and Polarity |
| Certifications | cUL, UL Listed |
Documents: RoHS REACH Conflict Minerals Report (CMRT)
Technical Certifications: UL listed, RoHS certified, CSA approved
Features a Lifetime Warranty
Quantity and Reseller Discounts are available; contact us for more information.
Government, Fortune 500, Military and Education are automatically approved for Net 30 terms
Call us at 1-800-590-8610 or email [email protected] for RFQ, assistance or PO
