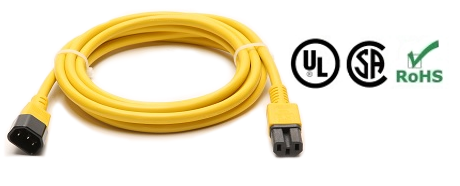

Yellow C14 to C15 AC power cord connects equipment in a data rack to a power strip
Yellow, IEC 60320 C14 Plug to C15 Connector, 15 Amps, 250V, 14/3 SJT
 |
* Yellow C14 plug to C15 connector power cords * Connect computers/servers to a rack pdu * C15 is also known as a "notched C13" * Rated for 15A and 250V * 14 AWG, 3 Wire SJT cable jacket * UL Listed, RoHS certified * Call 1-800-590-8610 for qty. discounts |
Specifications:
| Plug Type | C14 |
| Connector Type | C15 |
| Length | 1 Through 25 Foot (Custom Lengths Available – 24 hr. Turnaround) |
| Amperage | 15 Amps |
| Voltage | 250V |
| Number of Conductors | 3 |
| Wire Gauge | 14 AWG |
| Jacket Type | SJT |
| Temperature Rating |
105º C |
| Color | Yellow |
| Testing | Tested for Voltage Hi-Potential, Continuity, and Polarity |
| Certifications | cUL, UL Listed |
Tech Notes: Colored power cords allow you to easily identify various power paths within a data center server rack
Applications: Connect server and network equipment to a rack PDU in a rack enclosure
Related Terms: Yellow C15 to C14 cable, IEC320 C14 power cord, Yellow C14 to C15, C15 C14 PDU cords
Part Number: IBX-5010-X (X = Length)

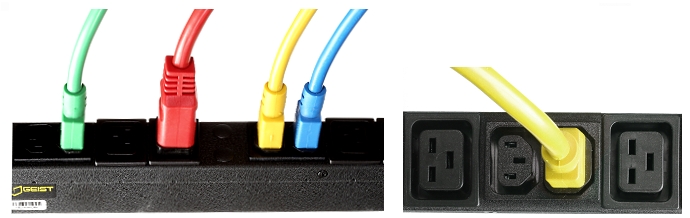

Application Shots:
