Splitter Power Cord – L6-20P to Two Way 6-20R Legs, 12/3, 20A, 250V


Iron Box part #IBX-48036202-10

SKU: IBX-48036202-10

Y Splitter Power Cable – NEMA L6-20P Plug to 6-20R x 2 Branch Splitter, 10 Foot

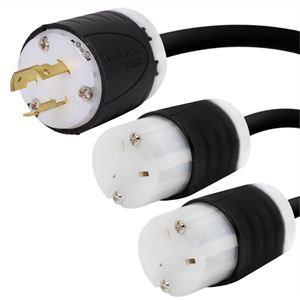

 Features:   One NEMA L6-20P plug splits out to two female 6-20R connectors

 Applications:  Provides power from an L6-20R receptacle to 2 separate pieces of equipment with a 6-20P inlet or cable

splitter power cord, l5-20 c13

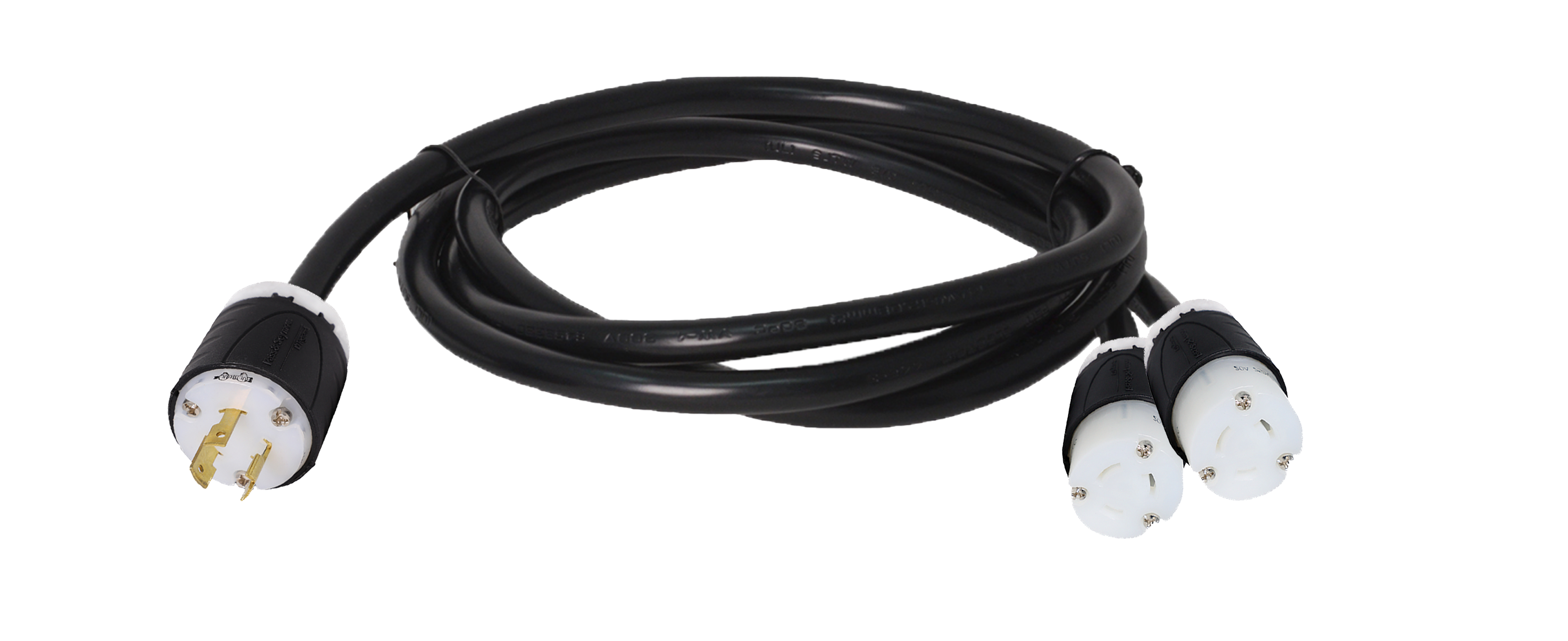

Splitter Power Cord w/ L6-20P Plug and 8 foot main branch to two way 6-20R legs at 2 foot


Plug                                       L6-20P
Connector 6-20R x 2
Amperage 20A
Voltage 250V
Length                                         10 Foot (8 ft lead, 2 ft legs)
Color Black
Wire Gauge 12/3
Jacket SJT

 Technical Certifications: UL listed, RoHS certified, CSA approved
