Splitter Power Cord – L5-30P to Two Way L5-30R Legs, 10/3, 30A, 125V


Iron Box part # IBX-580110-12

SKU: IBX-2X8630-12

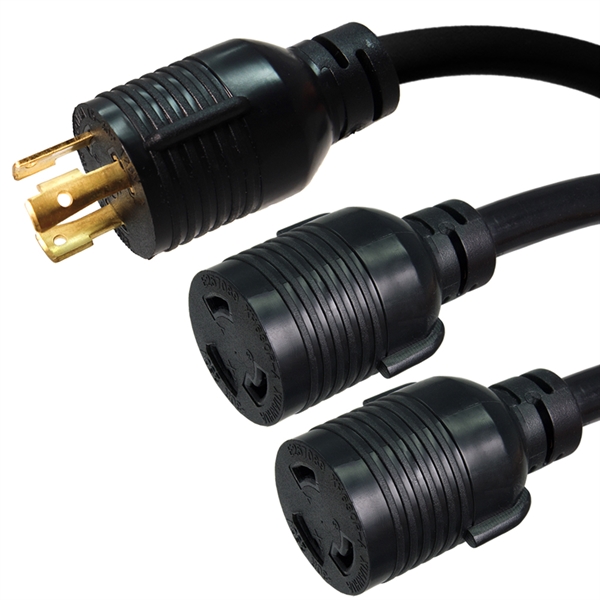

Y Splitter Power Cable – NEMA L5-30P Plug to L5-30R x 2 Branch Splitter, 12 Foot

 Features:   One NEMA L5-30P plug splits out to two female L5-30R connectors

 Applications:  Provides power from an L5-30R receptacle to 2 separate pieces of equipment with a L5-30P inlet or cable

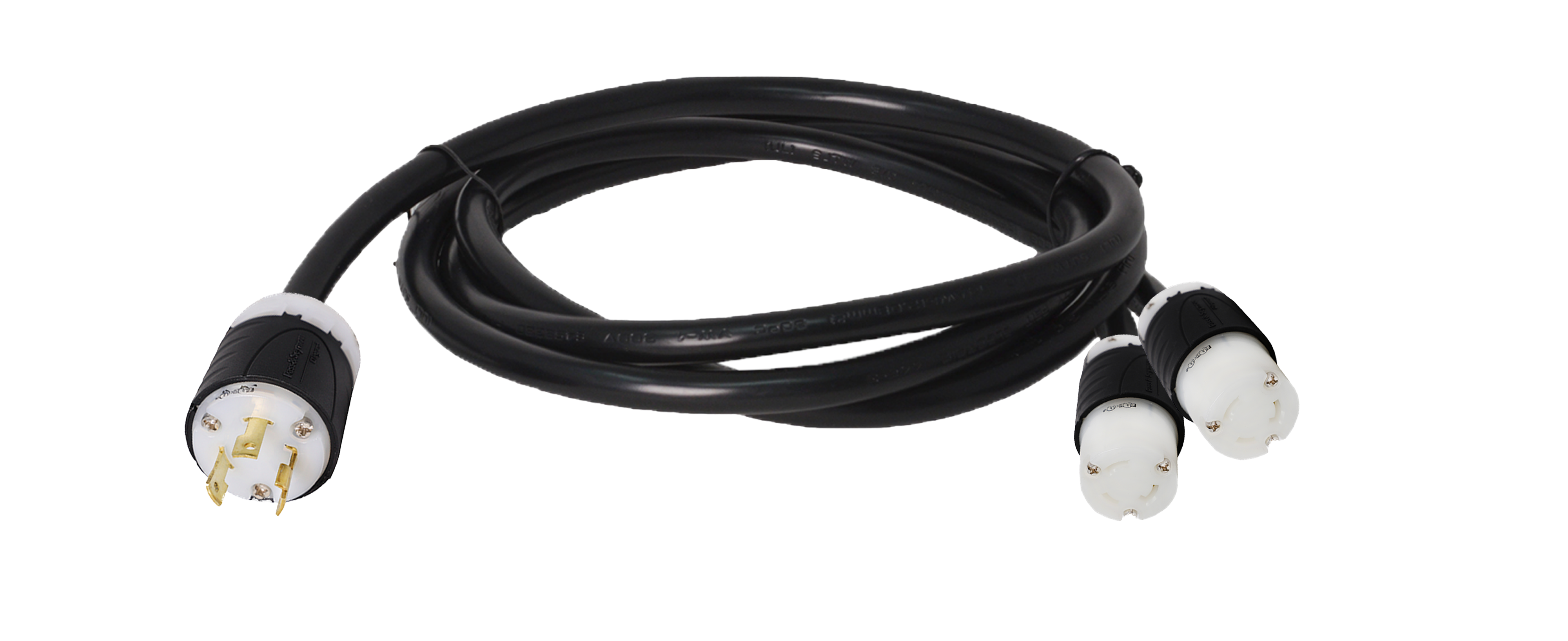

splitter power cord, l5-30 to l5-30

Splitter Power Cord w/ L5-30P Plug and 10 foot main branch to two way L5-30R legs at 2 foot


Plug                                       L5-30P
Connector L5-30R x 2
Amperage 30A
Voltage 125V
Length                                         12 Foot (10 ft lead, 2 ft legs)
Color Black
Wire Gauge 10/3
Jacket SJT

 Technical Certifications: UL listed, RoHS certified, CSA approved
