Splitter Power Cord – L5-20P to Two Way L5-30R Legs, 12/3, 20A, 125V


Iron Box part # IBX-480210

SKU: IBX-480210-12

Y Splitter Power Cable – NEMA L5-20P Plug to L5-30R x 2 Branch Splitter, 12 Foot

 Features:   One NEMA L5-20P plug splits out to two female L5-30R connectors

 Applications:  Provides power from an L5-30R receptacle to 2 separate pieces of equipment with a C20 inlet or cable

splitter power cord, l5-20 c13

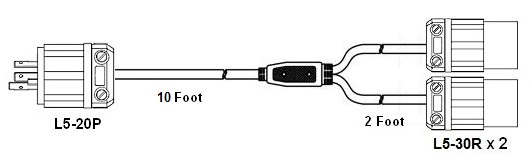

Splitter Power Cord w/ L5-20P Plug and 8 foot main branch to two way L5-30R legs at 2 foot


Plug L5-20P
Connector L5-30R x 2
Amperage 20A
Voltage 125V
Length                                         12 Foot (10 ft lead, 2 ft legs)
Color Black
Wire Gauge 12/3
Jacket SJT

 Technical Certifications: UL listed, RoHS certified, CSA approved

Quantity and Reseller Discounts are available; contact us for more information.
Government, Fortune 500, Military and Education are automatically approved for Net 30 terms
Call us at 1-800-590-8610 or email
[email protected] for RFQ, assistance or PO
